Product
제품소개

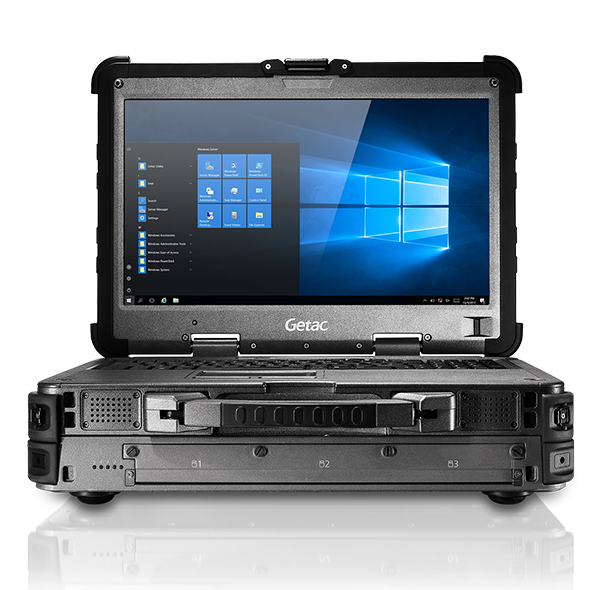

Getac Fully 모바일 서버는 세계최초의 서버클래스 Fully Rugged 노트북이며, 안전한 네트워크 지원이 불가능 한 야전에서 실질적인 데이터 스토리지를 제공하고 또한 빠른 서버 설치 및 운용이 가능합니다.
새롭게 선보인 Getac의 Fully등급의 모바일 X500 서버는 인텔의 Xeon® Processor와 64GB RAM, VGA카드와 5TB RAID 스토리지의 장착하여 최상의 성능을 제공합니다. 국방 및 산업 분야의 전문가들은 이제 보다 더 효율적인 컴퓨팅 작업을 수행 할 수 있으며 또한 동시에 많은 메모리 집약적인 작업 수행 역시 가능 합니다.
X500 Fully 모바일 서버는 미국방성 군사표준의 MIL-STD-810H와 방수 방진의 IP65가 인증 된 제품이며, 이는 휴대성이 용이한 노트북 컴퓨터와 서버의 장점이 결합된 모바일 시스템입니다. 또한 여러 개의 RAID 레벨 0, 1, 5 구성으로 최적화 한 데이터 저장 용량과 어떤 최악의 외부 물리적 환경에서도 데이터를 처리하는 동안 데이터 손실에 대한 우려를 방지하고 지켜 낼 수 있습니다.
X500 모바일 서버의 운영체제로, Microsoft Windows Server 2019를 사용한다는 것은 X500 Rugged 모바일 서버가 서버 클러스터링 개발과 네트워크 로드 밸런스의 서버 클러스터링에 있어서 네트워크로드 균형 조정 및 시스템의 신뢰성과 가동 시간을 보장하기 위한 결함 허용 기능을 제공하는 최상의 유연성과 확장성을 보장 한다는 의미입니다.
• X500 server 3D 이미지 보기
• Intel Xeon® Processor
• 15.6인치 TFT LCD FHD (1920 x 1080)
• 1000nits Quadraclear™ Sunlight Readable 디스플레이
• NVIDIA® GeForce® GTX1050M 4GB discrete Graphic Controller

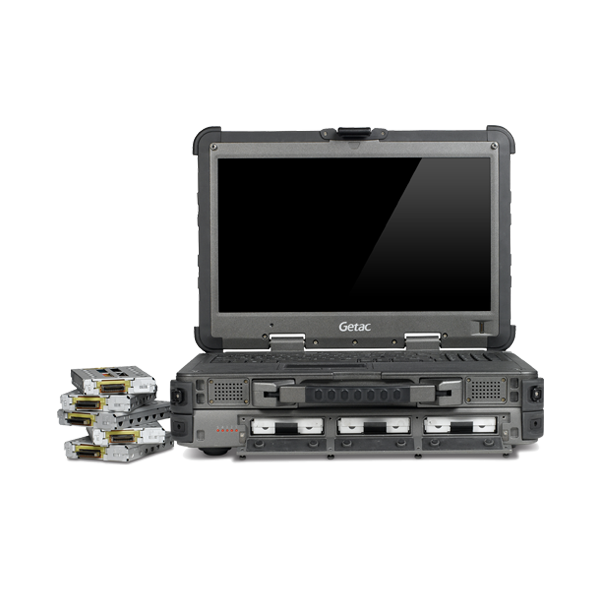

• RAID expansion unit with up to 5TB storage
• capacity and RAID configurable 0,1,5(옵션)
운영 시스템 |
· Windows Server 2019 |
Mobile Computing Platform |
· Intel® Xeon® Processor E3-1505M v6 3.0GHz, Max. 4.0GHz - 8MB Intel® Smart Cache |
VGA 컨트롤러 |
· Intel® HD Graphics P630 · NVIDIA® GeForce® GTX1050M 4GB discrete graphic controller · 옵션 : NVIDIA® Quadro® P2000 4GB discrete graphic controller |
디스플레이 |
· 15.6" TFT LCD FHD (1920 x 1080) · 1000 nits QuadraClear® sunlight readable display |
저장장치 및 메모리 |
· 32GB DDR4 / 32GB DDR4 ECC 옵션 : 64GB DDR4 / 64GB DDR4 ECC · 500 GB SATA HDD / 512GB SATA SSD 옵션 : 1TB SATA HDD / 1TB SATA SSD · Disk management : RAID 0, RAID 1 i |
키보드 |
· LED backlit membrane keyboard with integrated numeric keypad · 옵션 : LED backlit rubber keyboard |
포인팅 디바이스 |
· Touchpad - Glide touchpad with scroll bar |
확장 슬롯 |
· ExpressCard/54 x 1 · Smart Card reader x 1 · PCMCIA Type II x 1 |
Multimedia Bay |
· 2nd storage : HDD 500GB · 2nd storage 옵션 : 1TB HDD / 512GB SSD / 1TB SSD · 2nd battery 옵션 ii: 10.8V, 9240mAh, 99.8Wh |
확장 유닛 |
· 옵션 : SATA HDD / SSD 3TB maximum expandable to 5TB · Disk management : RAID 0, RAID 1, RAID 5 |

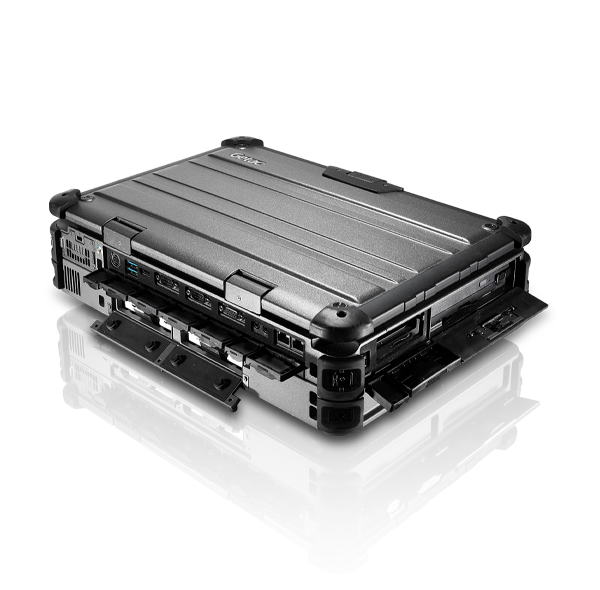

I/O 인터페이스 |
· Microphone (Mini-jack) x 1 · Audio output (Mini-jack) x 1 · DC in Jack x 1 · USB 3.2 Gen 1 Type-A x 4 · LAN (RJ45) x 2 · HDMI x 1 · External VGA (15-pin; D-sub) x 2 · Serial port (9-pin; D-sub) x 2 |
통신 인터페이스 |
· 10/100/1000 base-T Ethernet · 옵션 : Dedicated GPS |
소프트웨어 |
· Getac Utility · Getac Geolocation · Adaptec Storage Manager™ ii · 옵션 : Absolute Persistence® |
보안기능 |
· TPM 2.0 · Kensington Lock · Intel® vPro™ Technology · Smart Card reader |
전원 |
· AC adapter (150W, 100-240VAC, 50 / 60Hz) · Li-Ion smart battery (10.8V, 9240mAh, 99.8Wh) · 옵션: Mutlimedia Bay 2nd Li-Ion smart battery (10.8V, 9240mAh, 99.8Wh) ii |
크기 및 무게 |
· 410 x 320 x 65 mm (16.1" x 12.6" x 2.5") · 5.2 kg (11.4 lbs) iii · 410 x 320 x 119 mm (16.1" x 12.6" x 4.6") iv · 8.6 kg (18.9 lbs) iii |
내구성 및 견고성 |
· MIL-STD-810H certified and IP65 certified · Vibration & drop resistant · Full magnesium alloy case · Shock-protected removable HDD |
사용환경 |
· Temperature v: - Operating : -20°C to 55°C / -4°F to 131°F - Storage : -40°C to 71°C / -40°F to 160°F · Humidity : - 95% RH , non-condensing |
Protection Film(X500 Screen Protection Film with anti-glare and anti-reflection)
Power Adapter(AC adapter with power cord (150W, 100-240VAC)
Media Bay Solid State Drive(Solid State Drive is available in both 512GB and 1TB)
Media Bay Battery(Media bay battery for dual battery configuration)
Battery(main battery, 10.8V, 8700mAh)
Hard Disc Drive(500GB HDD with heater and canister)
Hard Disc Drive(1TB HDD with heater and canister)
Battery Charger(Dual bay battery charger for the main battery)
